Latest revision as of 16:28, 26 September 2025
As part of the Study 24.8 validation process, we performed runs for the Loma Prieta event in the BBP for both the BBP and CyberShake.
BBP 1D

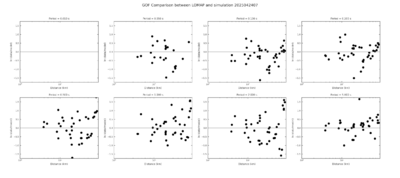

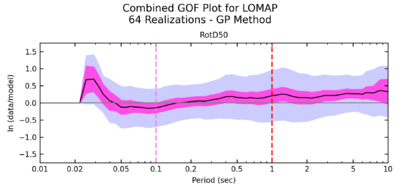

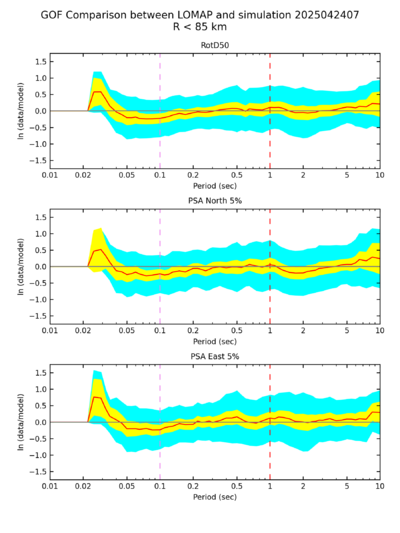

| Overall GoF | GoF, best realization (#7) | Residuals by distance (#7) | Residual map (#7) |
|---|---|---|---|
 |
 |
 |
 |
CyberShake 3D

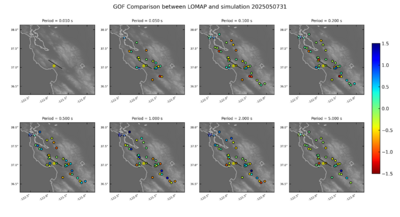

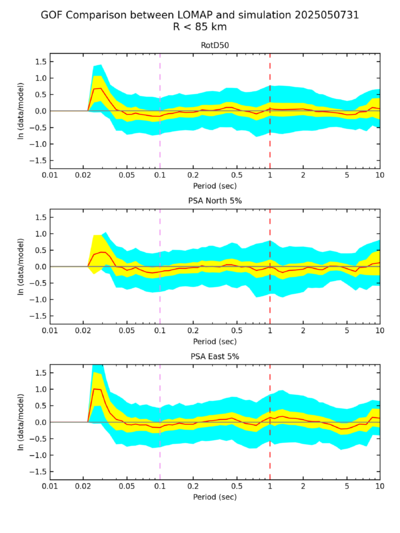

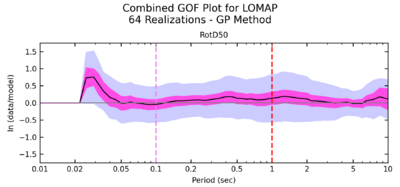

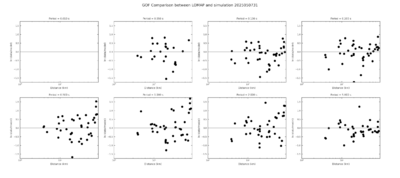

| Overall GoF | GoF, best realization (#31) | Residuals by distance (#31) | Residual map (#31) |
|---|---|---|---|
 |
 |
 |
 |

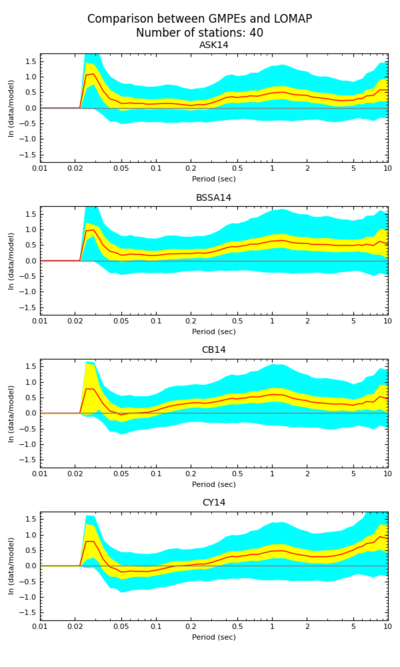

GMPEs
 |
