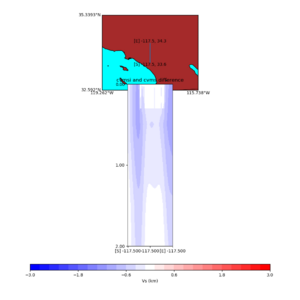

| [[FILE:diff_cvmsi_cvms_cross.png|thumb|300px|cvmsi cvms vs]]

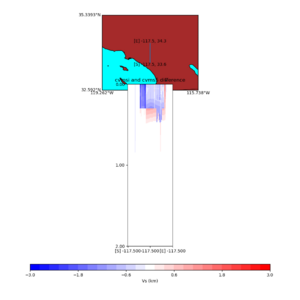

| [[FILE:diff_cvmsi_cvms5_cross.png|thumb|300px|cvmsi cvms5 vs]]
| [[FILE:diff_cvmsi_cvmsi_x_cross.png|thumb|300px|cvmsi and cvmsi_x vs]]

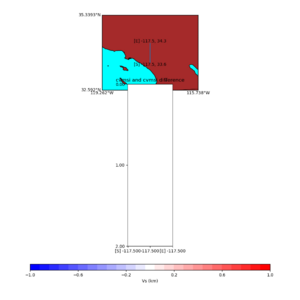

| [[FILE:diff_cvmsi_cvmsi_cross.png|thumb|300px|cvmsi and cvmsi vs]]

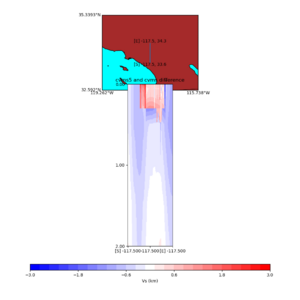

| [[FILE:diff_cvms5_cvms_cross.png|thumb|300px|cvms5 and cvms vs]]
|}


== Related Links ==
== Related Links ==
*[[Main Page]]
*[[Main Page]]
*[[UCVM]]
*[[UCVM]]

Revision as of 00:15, 29 January 2026

Study shallow regions handling of CVMS/CVMS5/CVMSI

Continuation from UCVM ucvm with sw4 using cvmsi

   cvms(CVM-S4)  - rule based model with basins+borholes+GTL
   cvms5(CVM-S4.26) - cvms as starting model, improved, no GTL
   cvmsi(CVM-S4.26M01) -- cvms +cvms5 + ADD_TJ_GTL

just for testing :

   cvmsi_x -- cvmsi minus ADD_TJ_GTL


Setup region of interest

roi

 -118.4 33.6
 -118.4 34.313
 -117.39 34.313
 -117.39 33.6

cross section endpoints,

 -117.50 33.60
 -117.50 34.31

Cross section calls, (from CVM explorer's container)


PROJ_LIB=/usr/local/share/ucvm/install/lib/proj/share/proj PATH=/usr/local/share/plotting/metada
ta_utilities/bin:/usr/local/share/anaconda3/bin:/usr/local/share/anaconda3/condabin:/usr/local/s
hare/anaconda3/envs/cvm_explorer_conda_env/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin
:/sbin:/bin PYTHONPATH=/usr/local/share/plotting/ucvm_plotting plot_cross_section.py -s 0 -h 710
 -d all -c cvmsi -a sd -n /usr/local/share/ucvm/install/conf/ucvm.conf -i /usr/local/share/ucvm/
install -v 5 -b 33.60,-117.50 -u 34.31,-117.50 -e 2000 -o ../result/cvmsi.png -A 0.0,4.0

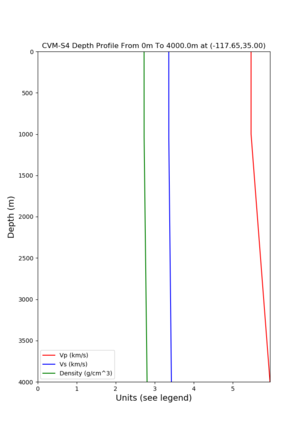

cvms vs
cvms5 vs
cvmsi vs
File:Cvmsi x.png
cvmsi_x vs

Difference plots of various cross sections

Difference calls, (from ucvm_plotting)

#!/bin/sh

## diff cvmsi and cvms5

param="-b 33.60,-117.5 -u 34.31,-117.5"
param2="-d vs -a sd -s 0 -e 2000 -x 111 -y 401 -h 710 -v 5"

PROJ_LIB=/usr/local/share/anaconda2/share/proj PATH=/usr/local/share/anaconda2/bin:/usr/local/s
hare/anaconda2/condabin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin PYTHONPATH=/home/mei/u
cvm_plotting/ucvm_plotting /home/mei/ucvm_plotting/ucvm_plotting/plot_cross_difference_section.p
y -c cvms5 $param $param2 -i $UCVM_INSTALL_PATH -o diff_cvmsi_cvms5_cross.png -f cvmsi_data.bin,
cvms5_data.bin -t 'cvmsi and cvms5 difference' -A -3,3
cvmsi cvms vs
cvmsi cvms5 vs
cvmsi and cvmsi_x vs
cvmsi and cvmsi vs
cvms5 and cvms vs
