Below are some selected data products from Study 18.8.

Selected Sites

We have selected the following 9 sites for closer comparison:

Long Name Short Name Lat Lon Run ID
San Francisco - Rincon Hill SFRH 37.786 -122.391 6003
Oakland - Fire Station 23 OKFS 37.7696 -122.1734 6000
Sacramento SAC 38.581573 -121.4944 6745
Livermore LVMR 37.681873 -121.768005 6888
Santa Rosa SRSA 38.440468 -122.71443 6709
San Jose SJO 37.339386 -121.89496 6987
Hayward HAYW 37.679 -122.082 5984
Yerba Buena CYB 37.807873 -122.3618 6009
Napa NAPA 38.29754 -122.286865 6743

Hazard Curves

Following are hazard curves for a selected subset of sites.

Site 2 sec 3 sec 5 sec 10 sec
SFRH
SFRH, 2 sec RotD50
SFRH, 3 sec RotD50
SFRH, 5 sec RotD50
SFRH, 10 sec RotD50
OKFS

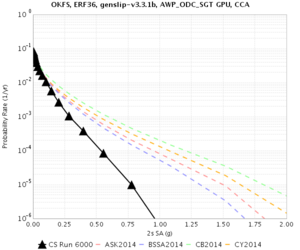

OKFS, 2 sec RotD50

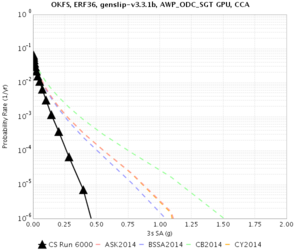

OKFS, 3 sec RotD50

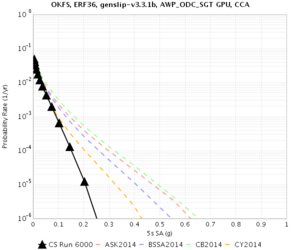

OKFS, 5 sec RotD50

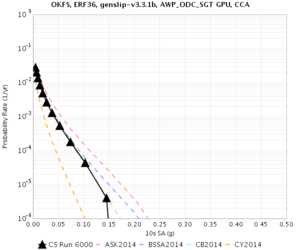

OKFS, 10 sec RotD50
SAC

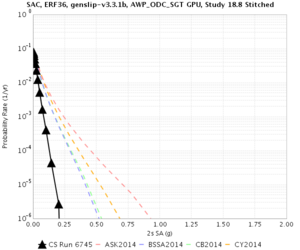

SAC, 2 sec RotD50

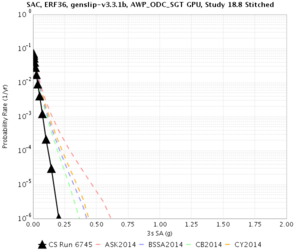

SAC, 3 sec RotD50
SAC, 5 sec RotD50

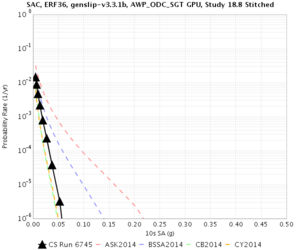

SAC, 10 sec RotD50
LVMR

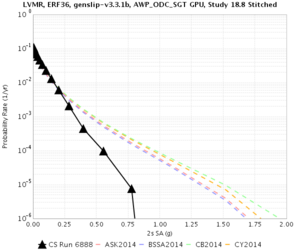

LVMR, 2 sec RotD50
LVMR, 3 sec RotD50

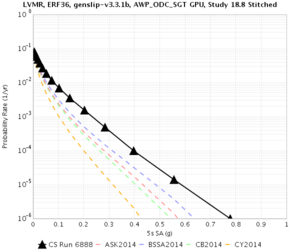

LVMR, 5 sec RotD50

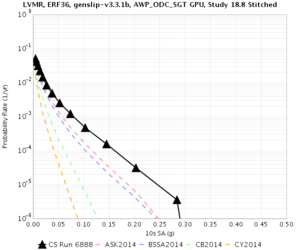

LVMR, 10 sec RotD50
SRSA
SRSA, 2 sec RotD50
SRSA, 3 sec RotD50
SRSA, 5 sec RotD50
SRSA, 10 sec RotD50
SJO
SJO, 2 sec RotD50
SJO, 3 sec RotD50
SJO, 5 sec RotD50
SJO, 10 sec RotD50
HAYW
HAYW, 2 sec RotD50
HAYW, 3 sec RotD50
HAYW, 5 sec RotD50

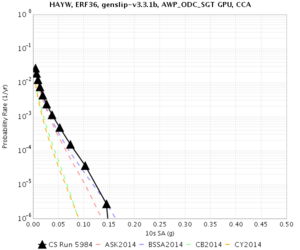

HAYW, 10 sec RotD50
CYB
CYB, 2 sec RotD50

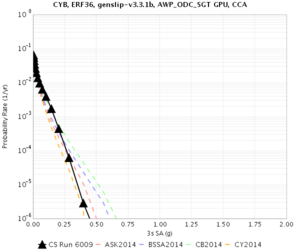

CYB, 3 sec RotD50

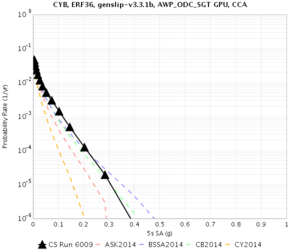

CYB, 5 sec RotD50
CYB, 10 sec RotD50
NAPA

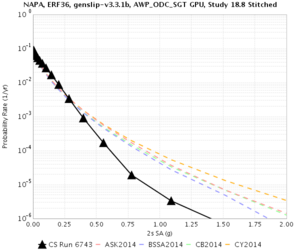

NAPA, 2 sec RotD50

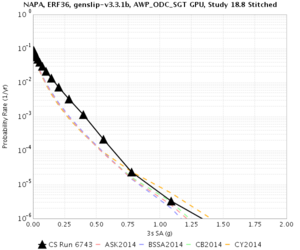

NAPA, 3 sec RotD50

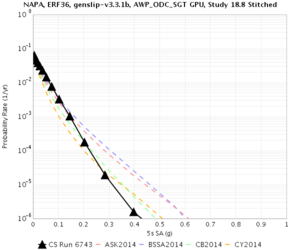

NAPA, 5 sec RotD50

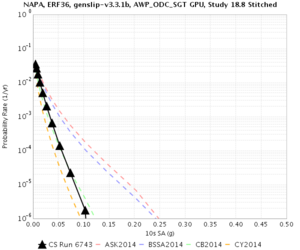

NAPA, 10 sec RotD50

Disaggregation

Site Top 5 CyberShake contributors CyberShake Plot Top 5 ASK contributors ASK Plot
SFRH
Source Percent Name
000039 57.07 N. San Andreas;SAO+SAN+SAP+SAS
000037 22.81 N. San Andreas;SAO+SAN
000041 10.91 N. San Andreas;SAP+SAS
000256 03.20 San Gregorio Connected
000127 03.05 N. San Andreas

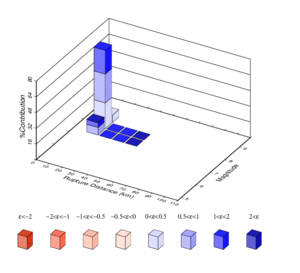

SFRH, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000039 34.88 N. San Andreas;SAO+SAN+SAP+SAS
000037 22.22 N. San Andreas;SAO+SAN
000041 17.04 N. San Andreas;SAP+SAS
000127 07.98 N. San Andreas
000256 05.79 San Gregorio Connected

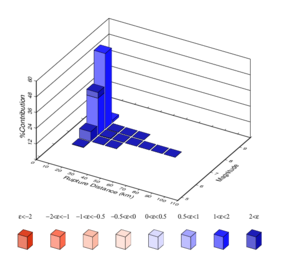

SFRH, ASK disaggregation at 3 sec RotD50
OKFS
Source Percent Name
000028 34.20 Hayward-Rodgers Creek;HN+HS
000029 23.71 Hayward-Rodgers Creek;HS
000126 19.70 Hayward-Rodgers Creek
000032 14.33 Hayward-Rodgers Creek;RC+HN+HS
000031 04.52 Hayward-Rodgers Creek;RC+HN

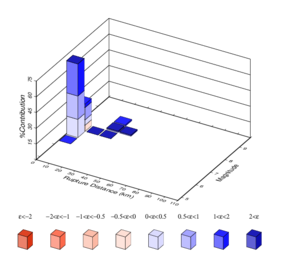

OKFS, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000028 33.23 Hayward-Rodgers Creek;HN+HS
000029 28.80 Hayward-Rodgers Creek;HS
000126 13.48 Hayward-Rodgers Creek
000032 07.75 Hayward-Rodgers Creek;RC+HN+HS
000039 06.05 N. San Andreas;SAO+SAN+SAP+SAS

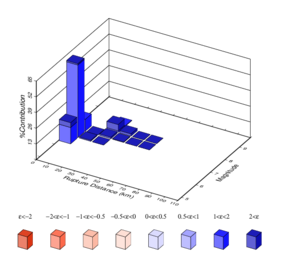

OKFS, ASK disaggregation at 3 sec RotD50
SAC
Source Percent Name
000133 28.04 Bartlett Springs
000296 21.04 1285_1654 Carson Range-Kings Canyon faults Char
000039 12.68 N. San Andreas;SAO+SAN+SAP+SAS
000037 07.85 N. San Andreas;SAO+SAN
000358 05.84 1647 Mount Rose fault zone Char

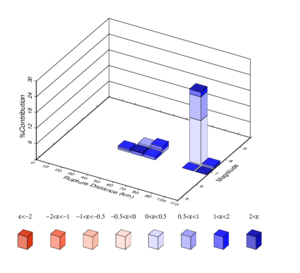

SAC, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000039 32.46 N. San Andreas;SAO+SAN+SAP+SAS
000037 18.87 N. San Andreas;SAO+SAN
000205 07.87 Maacama-Garberville
000190 07.17 Hunting Creek-Berryessa
000041 05.19 N. San Andreas;SAP+SAS

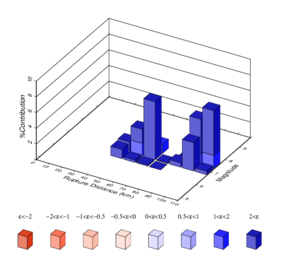

SAC, ASK disaggregation at 3 sec RotD50
LVMR
Source Percent Name
000039 36.75 N. San Andreas;SAO+SAN+SAP+SAS
000037 14.65 N. San Andreas;SAO+SAN
000179 13.34 Greenville Connected
000032 11.87 Hayward-Rodgers Creek;RC+HN+HS
000028 08.93 Hayward-Rodgers Creek;HN+HS

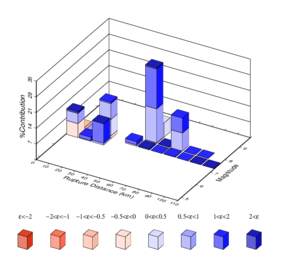

LVMR, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000179 29.86 Greenville Connected
000039 13.83 N. San Andreas;SAO+SAN+SAP+SAS
000004 11.07 Calaveras;CN+CC+CS
000214 09.57 Mount Diablo Thrust
000002 08.93 Calaveras;CN

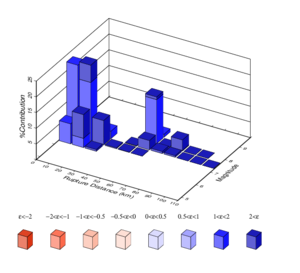

LVMR, ASK disaggregation at 3 sec RotD50
SRSA
Source Percent Name
000030 55.54 Hayward-Rodgers Creek;RC
000031 16.59 Hayward-Rodgers Creek;RC+HN
000032 13.32 Hayward-Rodgers Creek;RC+HN+HS
000126 06.65 Hayward-Rodgers Creek
000039 03.72 N. San Andreas;SAO+SAN+SAP+SAS

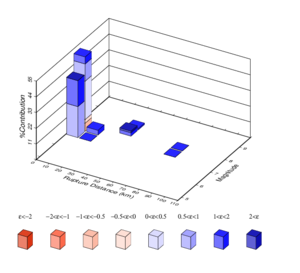

SRSA, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000030 62.45 Hayward-Rodgers Creek;RC
000031 09.58 Hayward-Rodgers Creek;RC+HN
000032 06.87 Hayward-Rodgers Creek;RC+HN+HS
000126 06.86 Hayward-Rodgers Creek
000205 05.48 Maacama-Garberville

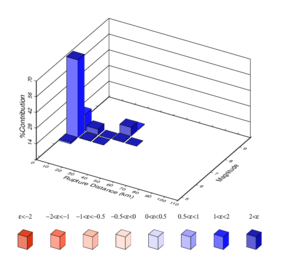

SRSA, ASK disaggregation at 3 sec RotD50
SJO
Source Percent Name
000039 74.48 N. San Andreas;SAO+SAN+SAP+SAS
000041 09.57 N. San Andreas;SAP+SAS
000037 06.04 N. San Andreas;SAO+SAN
000213 03.30 Monte Vista-Shannon
000127 03.07 N. San Andreas

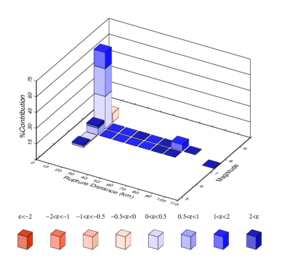

SJO, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000039 35.89 N. San Andreas;SAO+SAN+SAP+SAS
000041 15.25 N. San Andreas;SAP+SAS
000028 09.85 Hayward-Rodgers Creek;HN+HS
000029 05.97 Hayward-Rodgers Creek;HS
000004 05.92 Calaveras;CN+CC+CS

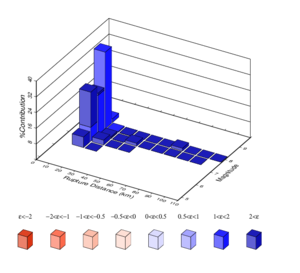

SJO, ASK disaggregation at 3 sec RotD50
HAYW
Source Percent Name
000028 37.46 Hayward-Rodgers Creek;HN+HS
000126 23.07 Hayward-Rodgers Creek
000029 18.29 Hayward-Rodgers Creek;HS
000032 18.00 Hayward-Rodgers Creek;RC+HN+HS
000039 01.68 N. San Andreas;SAO+SAN+SAP+SAS

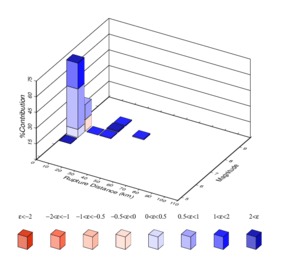

HAYW, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000028 35.88 Hayward-Rodgers Creek;HN+HS
000029 31.38 Hayward-Rodgers Creek;HS
000126 12.52 Hayward-Rodgers Creek
000032 08.33 Hayward-Rodgers Creek;RC+HN+HS
000039 06.09 N. San Andreas;SAO+SAN+SAP+SAS
HAYW, ASK disaggregation at 3 sec RotD50
CYB
Source Percent Name
000039 51.58 N. San Andreas;SAO+SAN+SAP+SAS
000037 31.97 N. San Andreas;SAO+SAN
000041 07.22 N. San Andreas;SAP+SAS
000127 02.90 N. San Andreas
000256 02.46 San Gregorio Connected

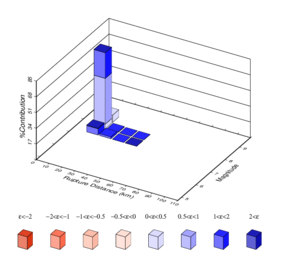

CYB, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000039 30.19 N. San Andreas;SAO+SAN+SAP+SAS
000037 20.34 N. San Andreas;SAO+SAN
000041 13.06 N. San Andreas;SAP+SAS
000028 07.99 Hayward-Rodgers Creek;HN+HS
000127 06.53 N. San Andreas

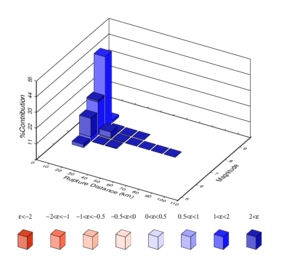

CYB, ASK disaggregation at 3 sec RotD50
NAPA
Source Percent Name
000039 25.07 N. San Andreas;SAO+SAN+SAP+SAS
000037 22.98 N. San Andreas;SAO+SAN
000284 17.42 West Napa
000030 08.18 Hayward-Rodgers Creek;RC
000032 05.92 Hayward-Rodgers Creek;RC+HN+HS

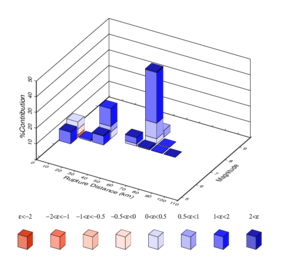

NAPA, CyberShake disaggregation at 3 sec RotD50
Source Percent Name
000284 25.23 West Napa
000178 19.21 Green Valley Connected
000039 13.16 N. San Andreas;SAO+SAN+SAP+SAS
000190 09.54 Hunting Creek-Berryessa
000030 08.06 Hayward-Rodgers Creek;RC

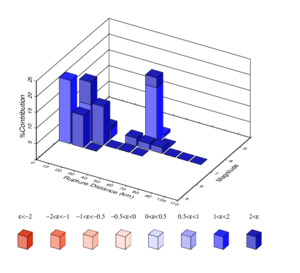

NAPA, ASK disaggregation at 3 sec RotD50

Velocity profiles

Below are velocity profiles for the 9 sites.

Site Velocity Profile (50 km) Velocity Profile (2 km)
SFRH
Velocity profile from CyberShake mesh for SFRH
Velocity profile from CyberShake mesh for SFRH, top 2 km
OKFS

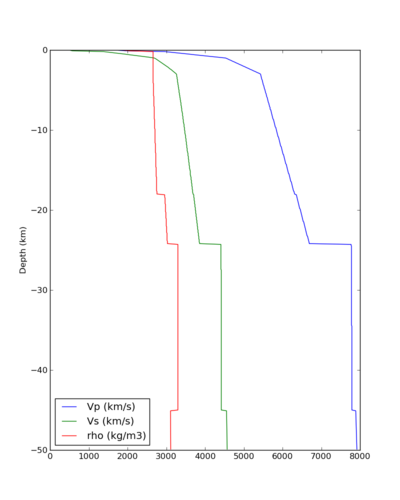

Velocity profile from CyberShake mesh for OKFS
Velocity profile from CyberShake mesh for OKFS, top 2 km
SAC

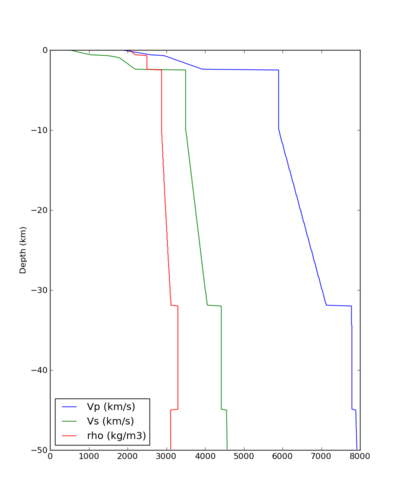

Velocity profile from CyberShake mesh for SAC

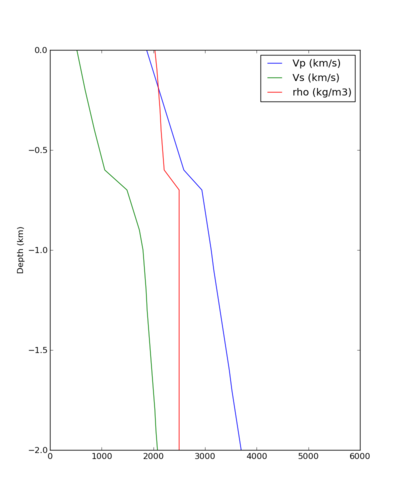

Velocity profile from CyberShake mesh for SAC, top 2 km
LVMR

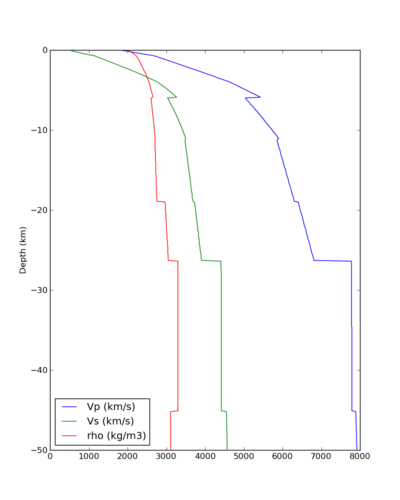

Velocity profile from CyberShake mesh for LVMR
Velocity profile from CyberShake mesh for LVMR, top 2 km
SRSA

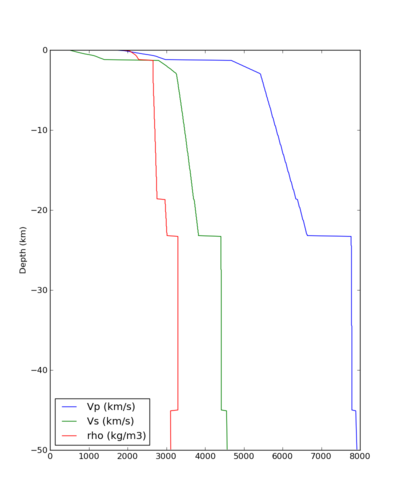

Velocity profile from CyberShake mesh for SRSA

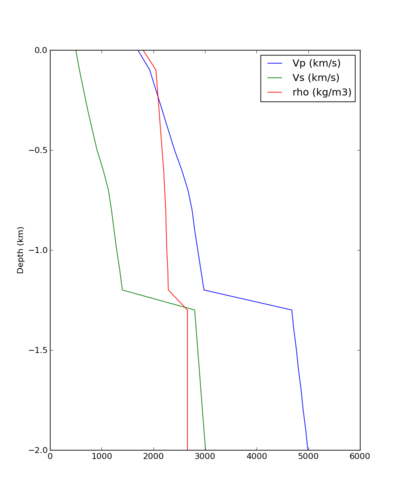

Velocity profile from CyberShake mesh for SRSA, top 2 km
SJO

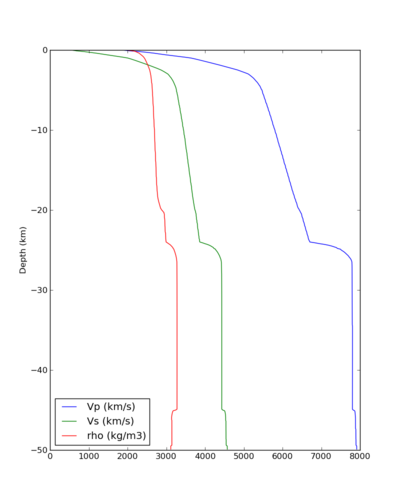

Velocity profile from CyberShake mesh for SJO

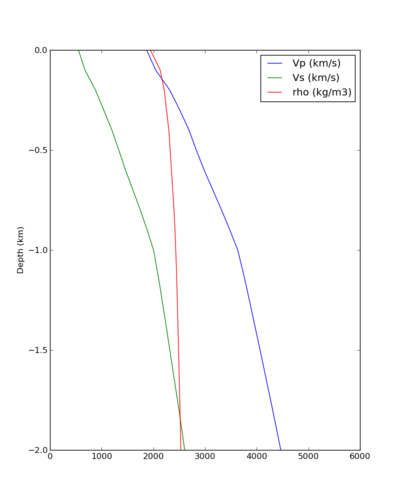

Velocity profile from CyberShake mesh for SJO, top 2 km
HAYW

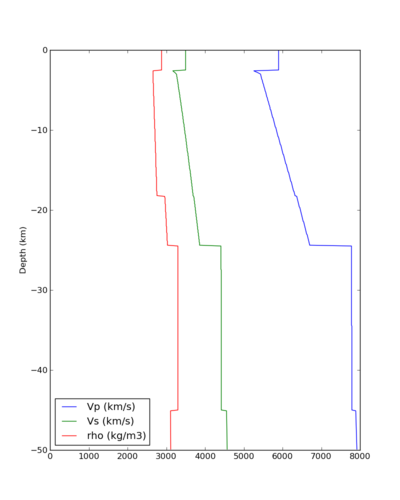

Velocity profile from CyberShake mesh for HAYW

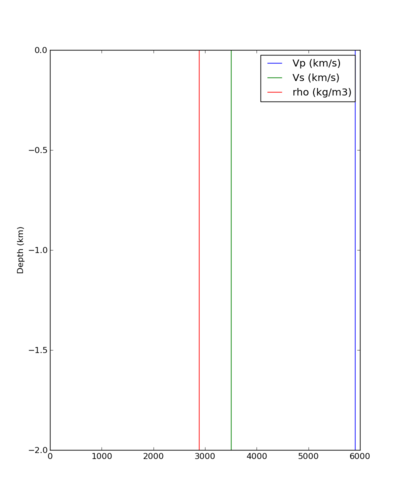

Velocity profile from CyberShake mesh for HAYW, top 2 km
CYB
Velocity profile from CyberShake mesh for CYB

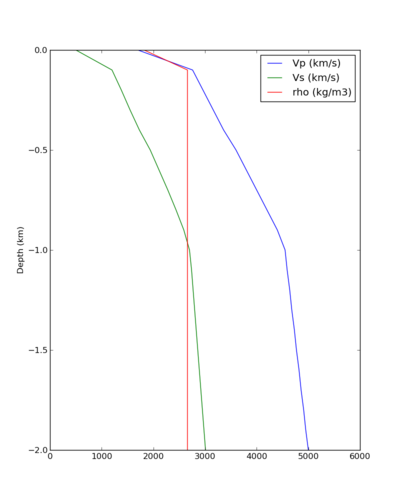

Velocity profile from CyberShake mesh for CYB, top 2 km
NAPA
Velocity profile from CyberShake mesh for NAPA
Velocity profile from CyberShake mesh for NAPA, top 2 km

Overlapping sites

32 sites were used in both Study 18.8 and Study 17.3. Below are difference and ratio maps for this region between the two studies.

Map Type 2 sec 3 sec 5 sec 10 sec
Diff (18.8 - 17.3)

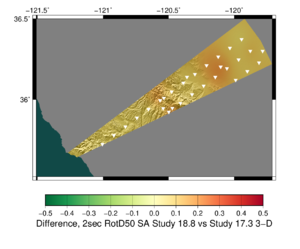

Difference plot, Study 18.8 - Study 17.3 3D, 2 sec RotD50
Difference plot, Study 18.8 - Study 17.3 3D, 3 sec RotD50

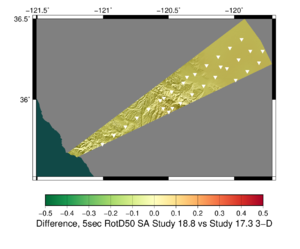

Difference plot, Study 18.8 - Study 17.3 3D, 5 sec RotD50

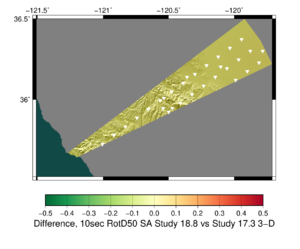

Difference plot, Study 18.8 - Study 17.3 3D, 10 sec RotD50
Ratio (18.8/17.3)

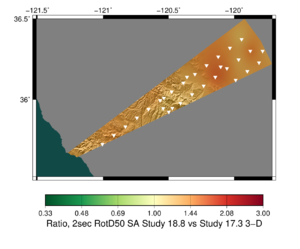

Ratio plot, Study 18.8/Study 17.3 3D, 2 sec RotD50

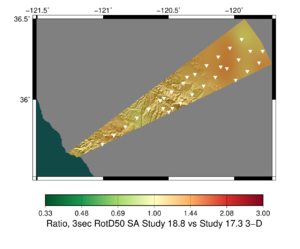

Ratio plot, Study 18.8/Study 17.3 3D, 3 sec RotD50

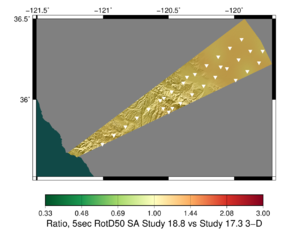

Ratio plot, Study 18.8/Study 17.3 3D, 5 sec RotD50
Ratio plot, Study 18.8/Study 17.3 3D, 10 sec RotD50

Higher-res versions are available here.

Comparison sites

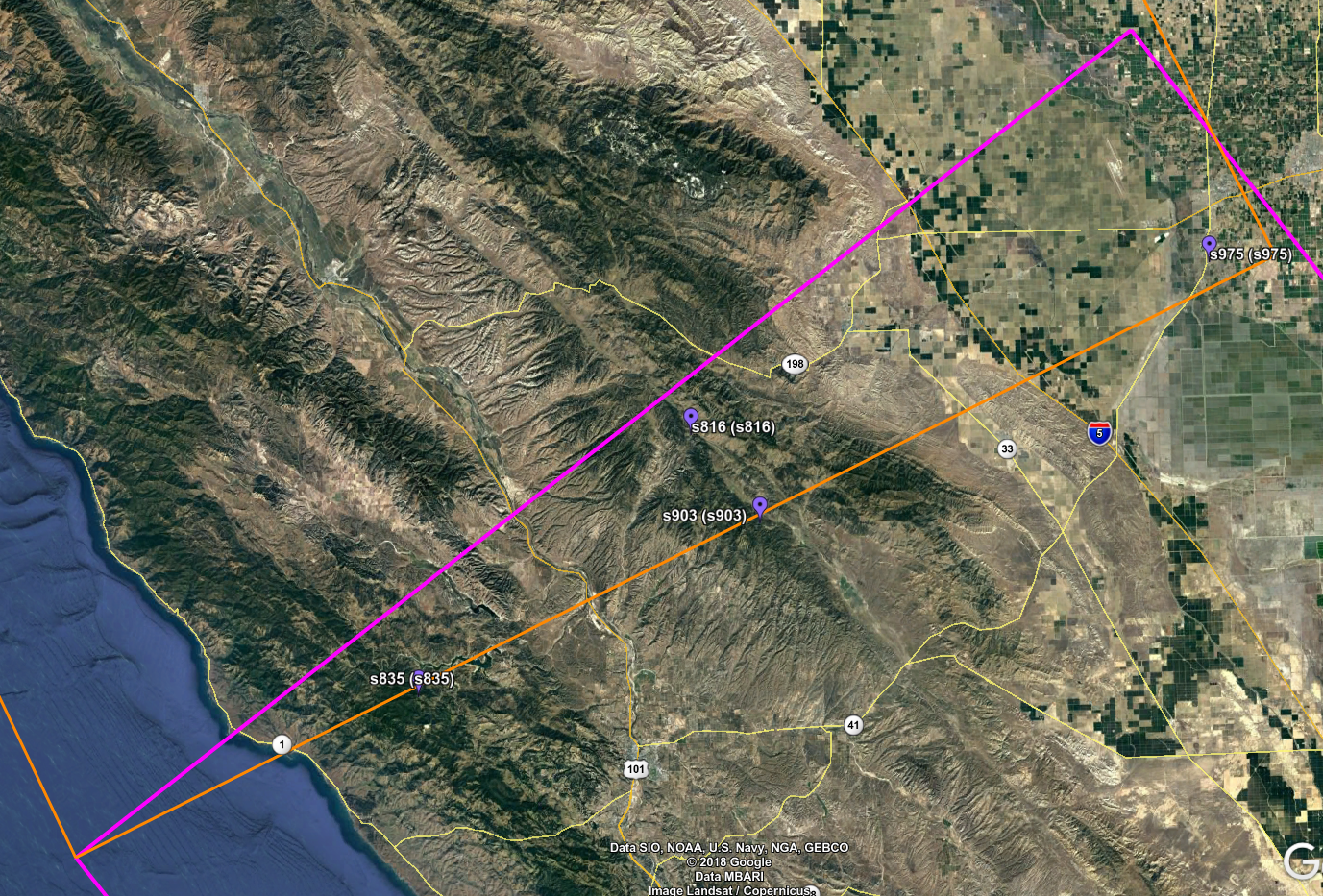

For more in-depth comparisons, we have selected 4 sites in the overlapping region: s835, near the coast; s816 and s903, in the mountains; and s975, in the valley.

Hazard Curves

Hazard curves for the 4 overlapping sites.

Site 2 sec 3 sec 5 sec 10 sec
s835

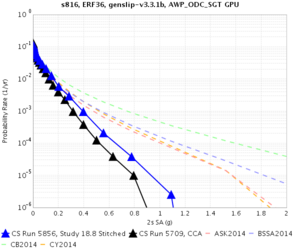

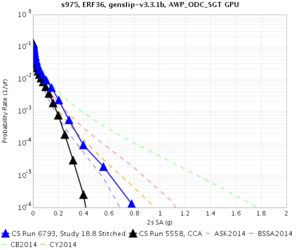

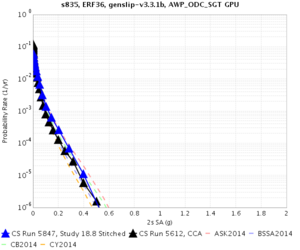

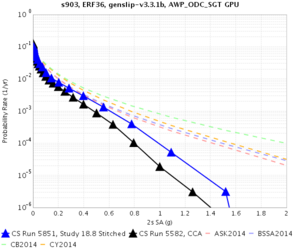

Study 18.8 (blue) vs Study 17.3 3D (black), 2 sec RotD50

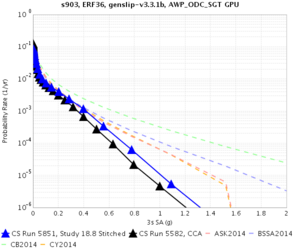

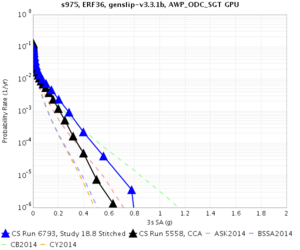

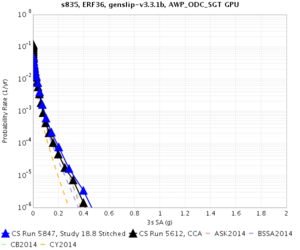

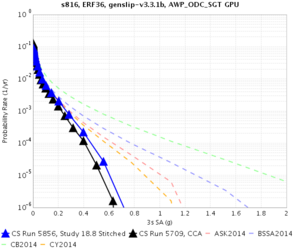

Study 18.8 (blue) vs Study 17.3 3D (black), 3 sec RotD50

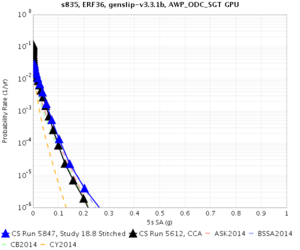

Study 18.8 (blue) vs Study 17.3 3D (black), 5 sec RotD50

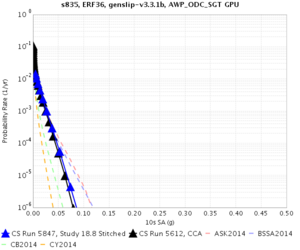

Study 18.8 (blue) vs Study 17.3 3D (black), 10 sec RotD50
s816
Study 18.8 (blue) vs Study 17.3 3D (black), 2 sec RotD50
Study 18.8 (blue) vs Study 17.3 3D (black), 3 sec RotD50
Study 18.8 (blue) vs Study 17.3 3D (black), 5 sec RotD50

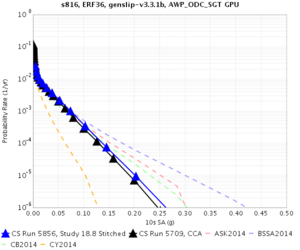

Study 18.8 (blue) vs Study 17.3 3D (black), 10 sec RotD50
s903
Study 18.8 (blue) vs Study 17.3 3D (black), 2 sec RotD50
Study 18.8 (blue) vs Study 17.3 3D (black), 3 sec RotD50
Study 18.8 (blue) vs Study 17.3 3D (black), 5 sec RotD50

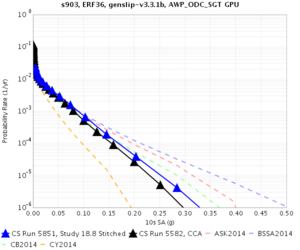

Study 18.8 (blue) vs Study 17.3 3D (black), 10 sec RotD50
s975
Study 18.8 (blue) vs Study 17.3 3D (black), 2 sec RotD50
Study 18.8 (blue) vs Study 17.3 3D (black), 3 sec RotD50
Study 18.8 (blue) vs Study 17.3 3D (black), 5 sec RotD50

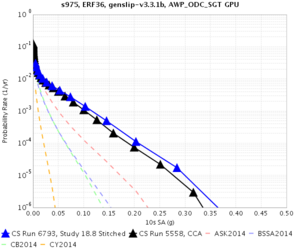

Study 18.8 (blue) vs Study 17.3 3D (black), 10 sec RotD50

Disaggregation

Disaggregation for the 4 sites, comparing Study 18.8 with Study 17.3.

Site Top 5 Study 18.8 contributors Study 18.8 Plot Top 5 Study 17.3 contributors Study 17.3 Plot
s835
Source Percent Name
000187 65.16 Hosgri
000249 26.40 Rinconada
000039 02.50 N. San Andreas;SAO+SAN+SAP+SAS
000085 01.66 S. San Andreas;PK+CH+CC+BB+NM+SM
000084 01.07 S. San Andreas;PK+CH+CC+BB+NM

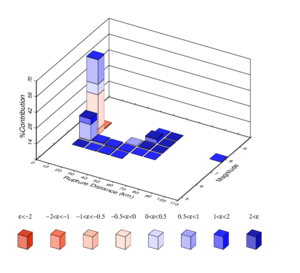

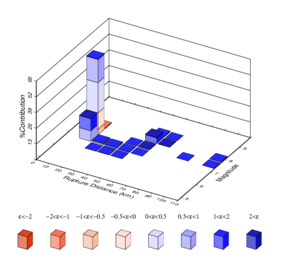

s835, Study 18.8 disagg 3 sec RotD50
Source Percent Name
000187 61.01 Hosgri
000249 24.79 Rinconada
000039 05.98 N. San Andreas;SAO+SAN+SAP+SAS
000085 03.07 S. San Andreas;PK+CH+CC+BB+NM+SM
000086 01.09 S. San Andreas;PK+CH+CC+BB+NM+SM+NSB
s835, Study 17.3 disagg 3 sec RotD50
s816
Source Percent Name
000084 27.94 S. San Andreas;PK+CH+CC+BB+NM
000085 21.87 S. San Andreas;PK+CH+CC+BB+NM+SM
000081 16.19 S. San Andreas;PK+CH
000083 12.72 S. San Andreas;PK+CH+CC+BB
000082 10.27 S. San Andreas;PK+CH+CC

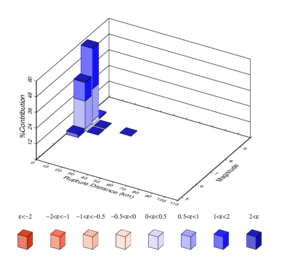

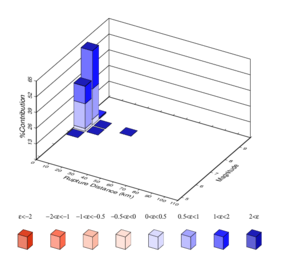

s816, Study 18.8 disagg 3 sec RotD50
Source Percent Name
000084 26.67 S. San Andreas;PK+CH+CC+BB+NM
000085 20.92 S. San Andreas;PK+CH+CC+BB+NM+SM
000081 18.84 S. San Andreas;PK+CH
000083 11.67 S. San Andreas;PK+CH+CC+BB
000082 10.79 S. San Andreas;PK+CH+CC
s816, Study 17.3 disagg 3 sec RotD50
s903
Source Percent Name
000085 31.85 S. San Andreas;PK+CH+CC+BB+NM+SM
000084 22.47 S. San Andreas;PK+CH+CC+BB+NM
000086 12.69 S. San Andreas;PK+CH+CC+BB+NM+SM+NSB
000083 10.31 S. San Andreas;PK+CH+CC+BB
000081 09.20 S. San Andreas;PK+CH

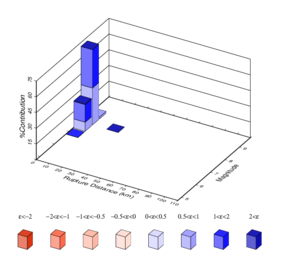

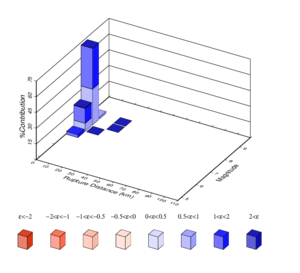

s903, Study 18.8 disagg 3 sec RotD50
Source Percent Name
000085 32.32 S. San Andreas;PK+CH+CC+BB+NM+SM
000084 23.86 S. San Andreas;PK+CH+CC+BB+NM
000086 11.82 S. San Andreas;PK+CH+CC+BB+NM+SM+NSB
000083 10.47 S. San Andreas;PK+CH+CC+BB
000082 07.50 S. San Andreas;PK+CH+CC
s903, Study 17.3 disagg 3 sec RotD50

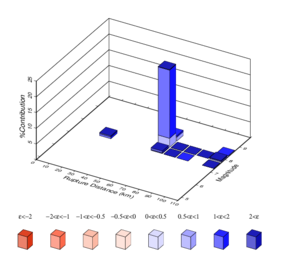

s975
Source Percent Name
000039 65.82 N. San Andreas;SAO+SAN+SAP+SAS
000041 14.52 N. San Andreas;SAP+SAS
000085 06.33 S. San Andreas;PK+CH+CC+BB+NM+SM
000084 03.23 S. San Andreas;PK+CH+CC+BB+NM
000086 02.94 S. San Andreas;PK+CH+CC+BB+NM+SM+NSB
s975, Study 18.8 disagg 3 sec RotD50
Source Percent Name
000039 57.73 N. San Andreas;SAO+SAN+SAP+SAS
000085 12.08 S. San Andreas;PK+CH+CC+BB+NM+SM
000041 10.75 N. San Andreas;SAP+SAS
000084 04.08 S. San Andreas;PK+CH+CC+BB+NM
000086 03.77 S. San Andreas;PK+CH+CC+BB+NM+SM+NSB
s975, Study 17.3 disagg 3 sec RotD50

Waveforms

We've selected the two events we used for investigating velocity models for waveform comparisons. Those events are:

  1. A M8.15 northern SAF event (source 39, rupture 5, rupture variation 311, hypocenter just offshore about 60 km south of Eureka)
  2. A M7.75 southern SAF event (source 59, rupture 0, rupture variation 0, hypocenter near Bombay Beach)
Retrieved from "https://strike.scec.org/index.php?title=CyberShake_Study_18.8_Data_Products&oldid=22819"
