Below are data products from CyberShake Study 17.3.

Hazard Maps with 57 additional sites

Below are hazard maps produced with the 438 Study 17.3 sites and an additional 52 sites in Study 17.3b.

Basic Hazard Maps

CCA-06 CCA-06 with sites CCA 1D CCA 1D with sites
2 sec RotD50

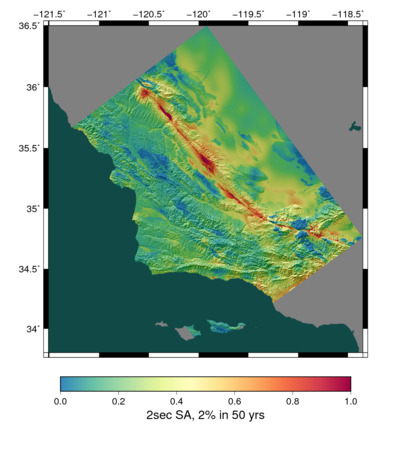

2 sec hazard map, CCA-06
2 sec hazard map, CCA-06, sites marked
2 sec hazard map, CCA 1D

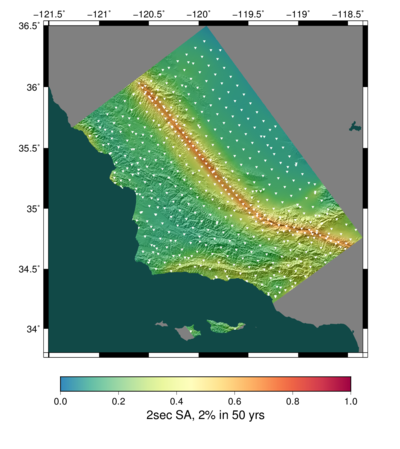

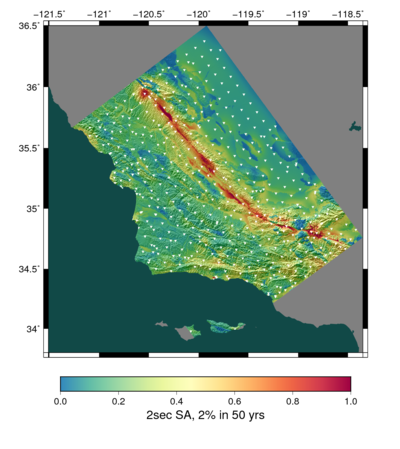

2 sec hazard map, CCA 1D, sites marked
3 sec RotD50

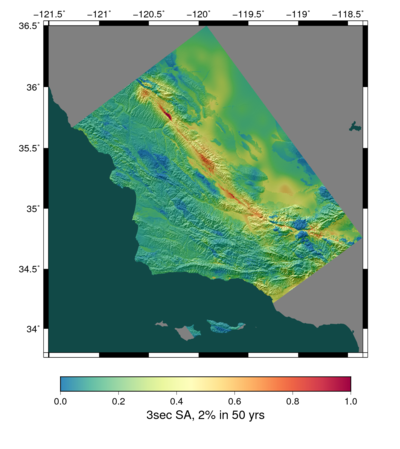

3 sec hazard map, CCA-06

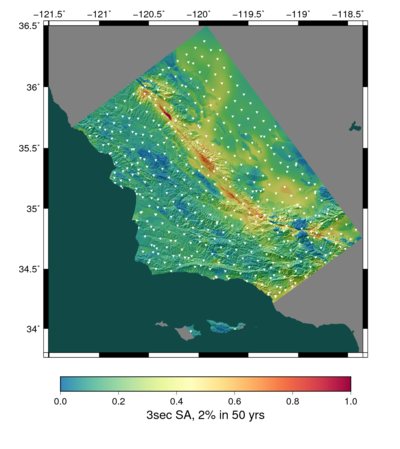

3 sec hazard map, CCA-06, sites marked
3 sec hazard map, CCA 1D
3 sec hazard map, CCA 1D, sites marked
5 sec RotD50

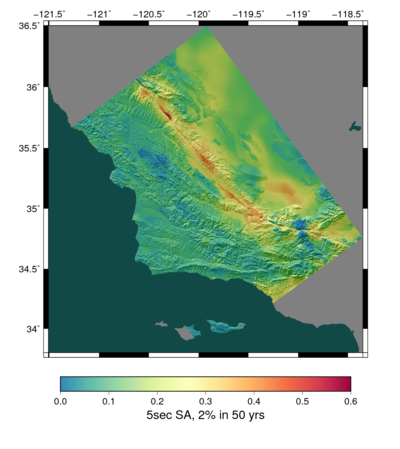

5 sec hazard map, CCA-06
5 sec hazard map, CCA-06, sites marked

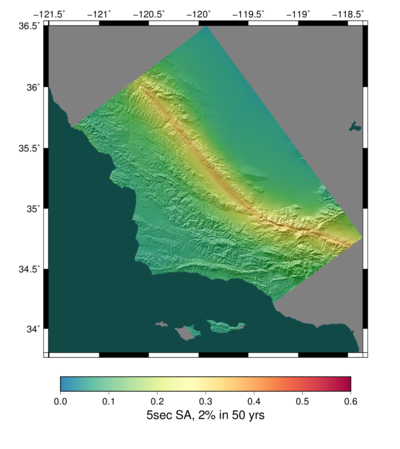

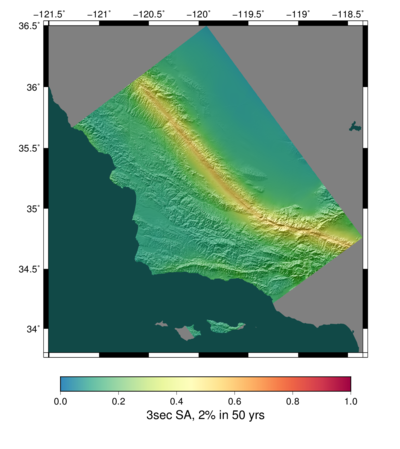

5 sec hazard map, CCA 1D
5 sec hazard map, CCA 1D, sites marked
10 sec RotD50
10 sec hazard map, CCA-06
10 sec hazard map, CCA-06, sites marked
10 sec hazard map, CCA 1D

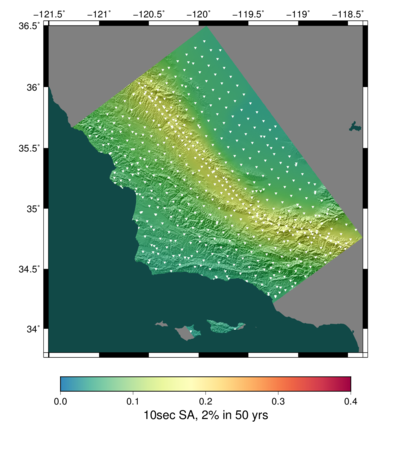

10 sec hazard map, CCA 1D, sites marked

Overlapping Region

Below are difference and ratio plots, comparing the Study 17.3b and the Study 15.4 results. Warm colors mean that Study 17.3b results are higher, cool are lower.

In general, the Study 17.3b results are lower. The CVM-S4.26 and CCA-06 models are similar in this region, but in Study 17.3b we do not have a GTL and we apply a minimum Vs of 900 m/s, whereas in Study 15.4 we had a GTL and the minimum Vs was 500 m/s. This likely explains the difference.

Period Difference Ratio
2 sec

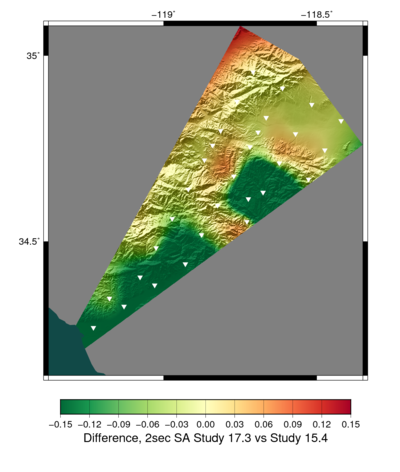

RotD50, 2 sec difference

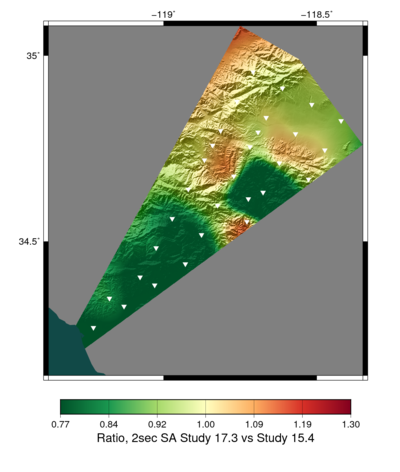

RotD50, 2 sec ratio
3 sec

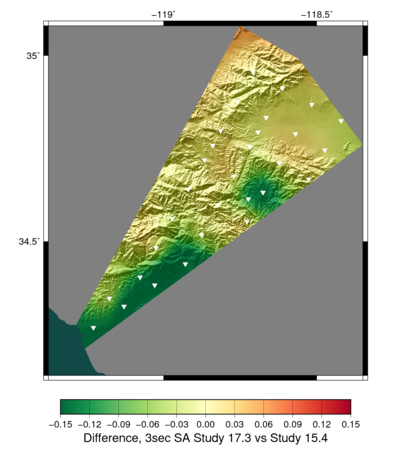

RotD50, 3 sec difference
RotD50, 3 sec ratio
5 sec

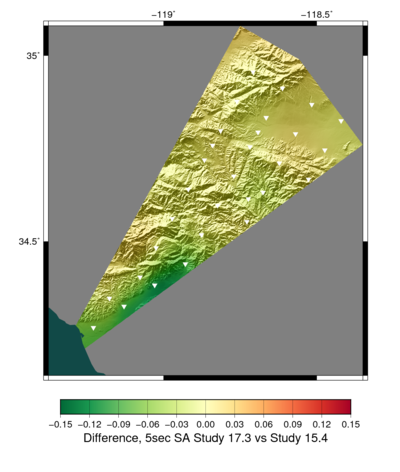

RotD50, 5 sec difference
RotD50, 5 sec ratio
10 sec

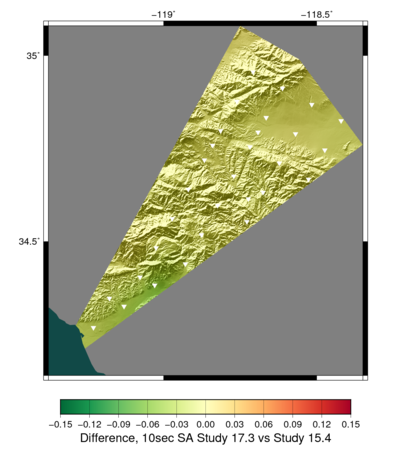

RotD50, 10 sec difference

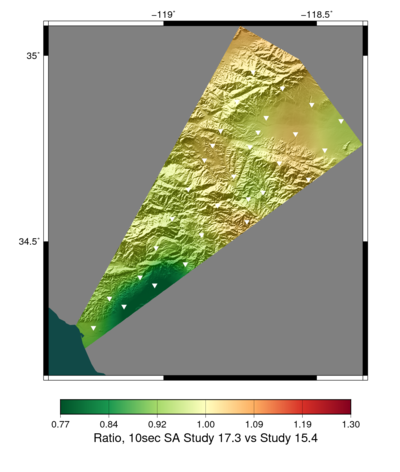

RotD50, 10 sec ratio

Combined Maps

These combined maps were produced by combining RotD50 results from Study 15.4 (LA, CVM-S4.26) and Study 17.3b (Central CA, CCA-06). In the small overlap region between the CCA and LA CyberShake regions, values at sites in both studies were averaged with equal weight. Additionally, these maps use the Vs30 only basemap (not Z1.0 or Z2.5). Note that the scale changes depending on the map.

2 sec

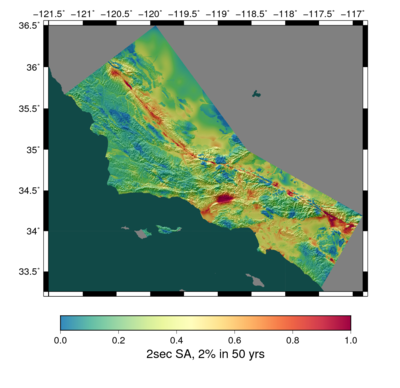

RotD50, 2 sec
3 sec

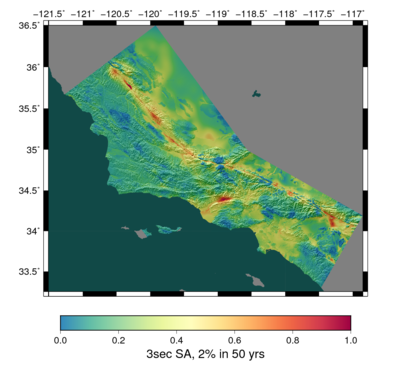

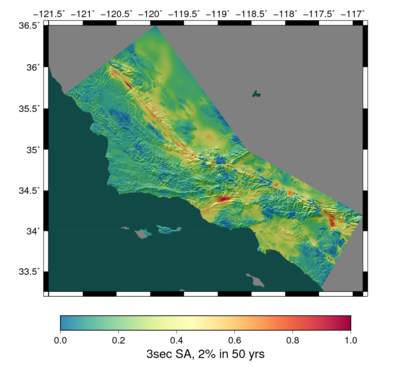

RotD50, 3 sec
5 sec

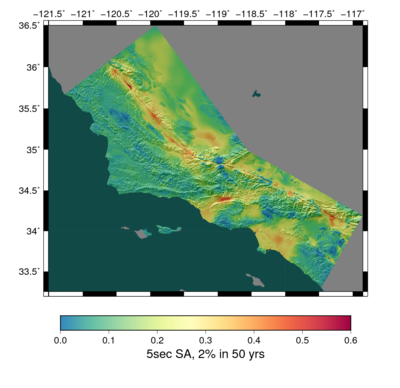

RotD50, 5 sec
10 sec
RotD50, 10 sec


NGA-2 Basemaps

3D basemap 1D basemap Combined 3D basemap
2 sec
2 sec CCA-06 basemap

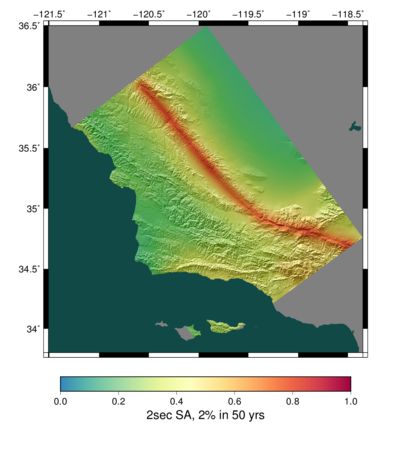

2 sec CCA 1D basemap

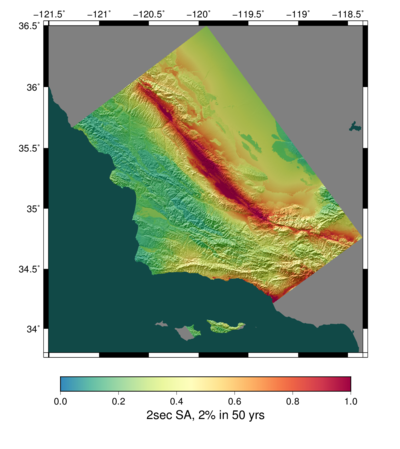

2 sec combined 3D basemap
3 sec
3 sec CCA-06 basemap
3 sec CCA 1D basemap
3 sec combined 3D basemap
5 sec
5 sec CCA-06 basemap
5 sec CCA 1D basemap
5 sec combined 3D basemap
10 sec

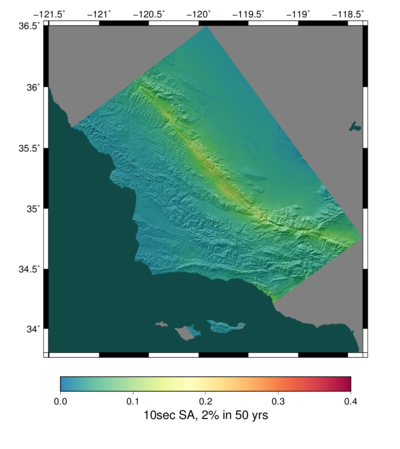

10 sec CCA-06 basemap
10 sec CCA 1D basemap
10 sec combined 3D basemap

Hazard Maps, original sites

Below are hazard maps produced using the original 438 sites.

Basic Hazard Maps

CCA-06 CCA-06 with sites CCA 1D CCA 1D with sites
2 sec RotD50
2 sec hazard map, CCA-06
2 sec hazard map, CCA-06, sites marked
2 sec hazard map, CCA 1D
2 sec hazard map, CCA 1D, sites marked
3 sec RotD50
3 sec hazard map, CCA-06
3 sec hazard map, CCA-06, sites marked
3 sec hazard map, CCA 1D
3 sec hazard map, CCA 1D, sites marked
5 sec RotD50
5 sec hazard map, CCA-06
5 sec hazard map, CCA-06, sites marked
5 sec hazard map, CCA 1D
5 sec hazard map, CCA 1D, sites marked
10 sec RotD50
10 sec hazard map, CCA-06
10 sec hazard map, CCA-06, sites marked
10 sec hazard map, CCA 1D
10 sec hazard map, CCA 1D, sites marked

Overlapping Region

Below are difference and ratio plots, comparing the Study 17.3 and the Study 15.4 results. Warm colors mean that Study 17.3 results are higher, cool are lower.

In general, the Study 17.3 results are lower. The CVM-S4.26 and CCA-06 models are similar in this region, but in Study 17.3 we do not have a GTL and we apply a minimum Vs of 900 m/s, whereas in Study 15.4 we had a GTL and the minimum Vs was 500 m/s. This likely explains the difference.

Period Difference Ratio
2 sec
RotD50, 2 sec difference
RotD50, 2 sec ratio
3 sec
RotD50, 3 sec difference
RotD50, 3 sec ratio
5 sec
RotD50, 5 sec difference
RotD50, 5 sec ratio
10 sec
RotD50, 10 sec difference
RotD50, 10 sec ratio

Combined Maps

These combined maps were produced by combining RotD50 results from Study 15.4 (LA, CVM-S4.26) and Study 17.3 (Central CA, CCA-06). In the small overlap region between the CCA and LA CyberShake regions, values at sites in both studies were averaged with equal weight. Additionally, these maps use the Vs30 only basemap (not Z1.0 or Z2.5). Note that the scale changes depending on the map.

2 sec
RotD50, 2 sec
3 sec
RotD50, 3 sec
5 sec
RotD50, 5 sec
10 sec
RotD50, 10 sec

NGA-2 Basemaps

3D basemap 1D basemap
2 sec
2 sec CCA-06 basemap

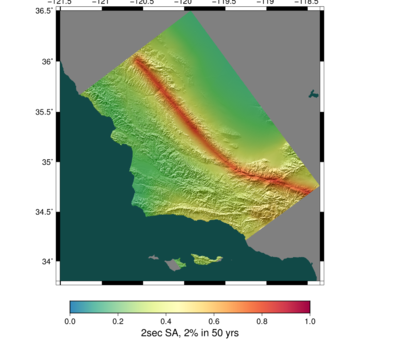

2 sec CCA 1D basemap
3 sec
3 sec CCA-06 basemap

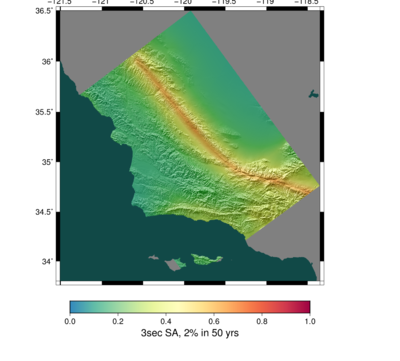

3 sec CCA 1D basemap
5 sec
5 sec CCA-06 basemap
5 sec CCA 1D basemap
10 sec
10 sec CCA-06 basemap

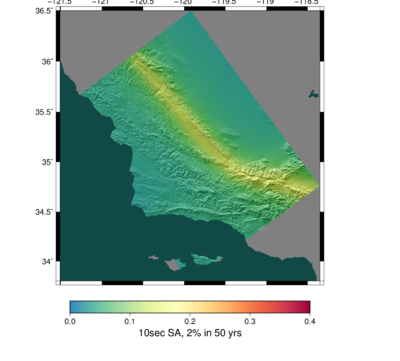

10 sec CCA 1D basemap

Individual Basemaps

Below are 2 second basemaps for each NGA-2 individually.

ASK 2014 BSSA 2014 CB 2014 CY 2016
Basin Effects & Vs30

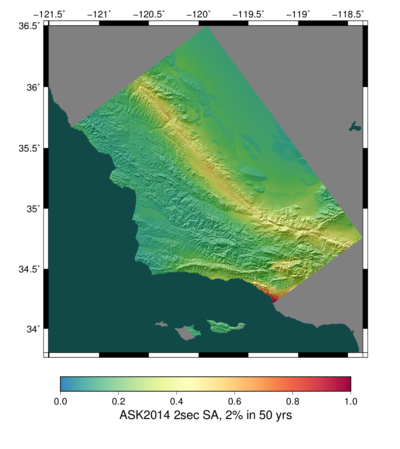

ASK 2014

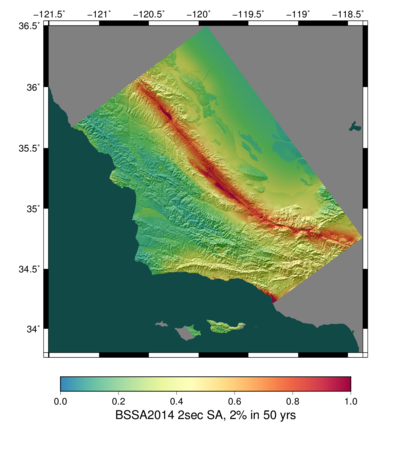

BSSA 2014

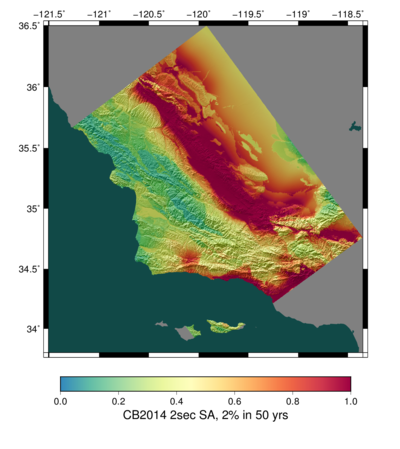

CB 2014
CY 2014

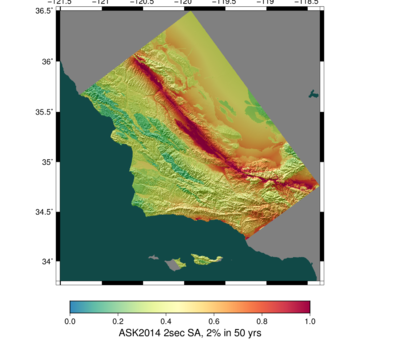

Vs30 Only
ASK 2014
BSSA 2014
CB 2014
CY 2014

Velocity Maps

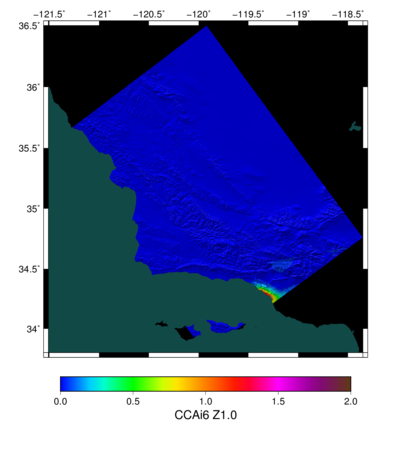

Z1.0, CCA-06 model

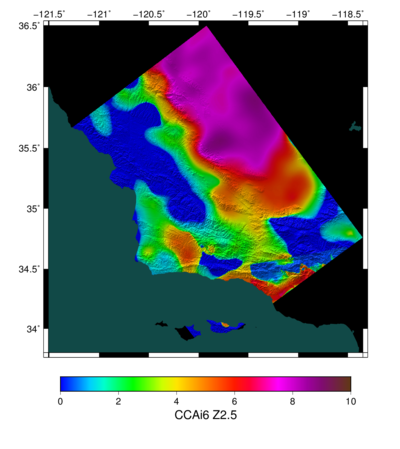

Z2.5, CCA-06 model

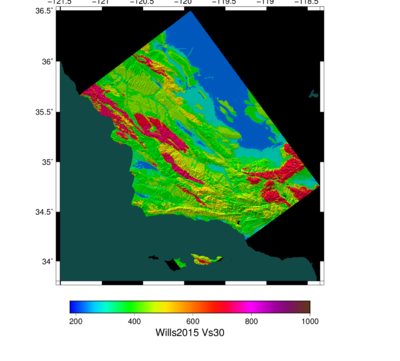

Wills 2015 Vs30
